How to do a 2023 Toyota Corolla oil change which involves several steps. Here’s my guide on how to do it using several years of experience changing oil on a number of different cars and trucks.

Video for changing Hybrid Corolla oil

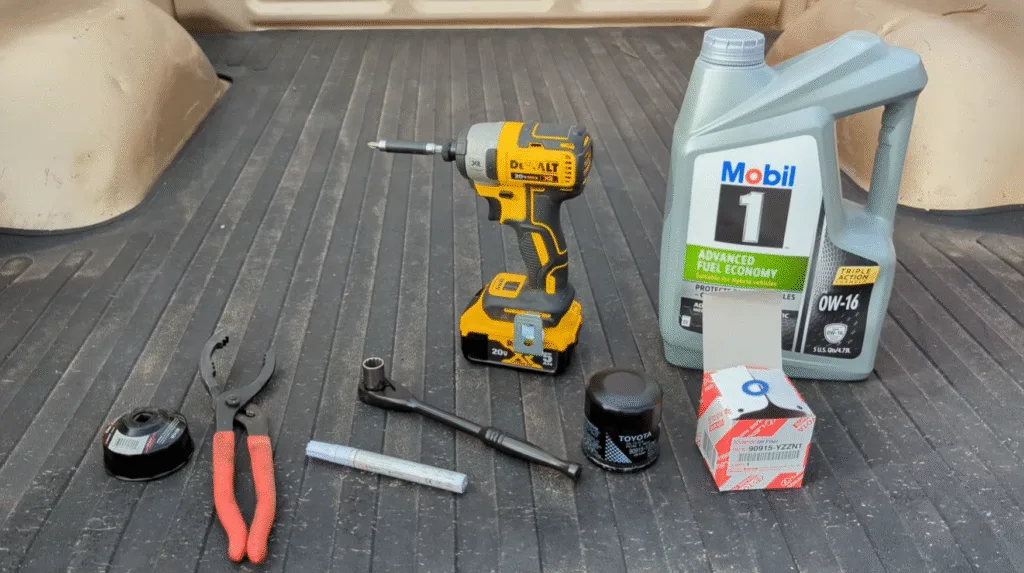

Materials and Tools Needed:

  1. New oil filter (Toyota OEM 90915-YZZN1)
  2. Drain plug gasket
  3. 5 qts new oil (Mobile 1 Synthetic 0W-16)
  4. Oil catch pan and oil catch tray
  5. Socket set and wrenches
  6. Oil filter wrench – 65/67 mm size
  7. Oil funnel
  8. Jack and jack stands or Rhino Ramps
  9. Torque wrench
  10. Wheel chocks

Steps:

  1. Preparation:
    • Ensure your car is parked on a level surface and the engine is cool but make sure to drive the car a little bit so the oil is warm or hot so that it flows freely.
    • Gather all the necessary tools and materials – see list above at the top of this page.
  2. Lifting the Car:
    • If your Corolla is low to the ground, you need to lift it using a jack and secure it with jack stands. We used Rhino Ramps, an alternative product that is faster and easier to use. Follow your vehicle’s manual for proper lifting points if using a jack.
  1. Locating the Oil Drain Plug:
    • Underneath the engine, move the drain pan near the opening of the oil drain plug.

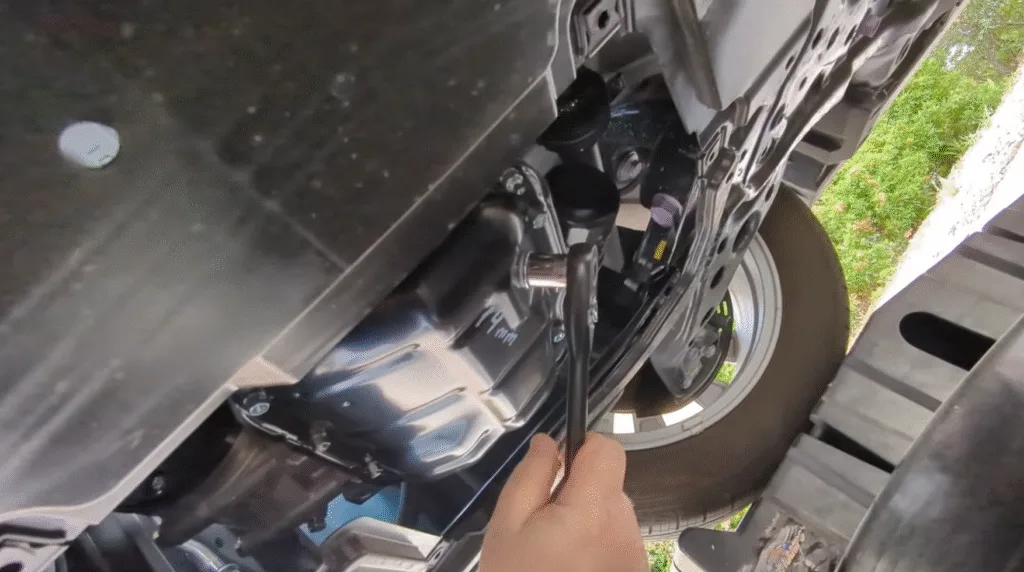

  1. Draining the Old Oil:
    • Using a socket wrench with a 14mm socket, carefully loosen and remove the oil drain plug.
    • Allow the old oil to drain completely into the oil drain pan. Measure the amount that comes out so you can track if the engine is burning oil.
    • Remove the old drain plug gasket – it might be stuck to the oil pan or the drain plug.
  2. Removing the Old Oil Filter:
    • The oil filter is located near the passenger side trie next to the oil pan. Use an oil filter wrench to loosen and remove it. Careful not to burn your skin with the hot oil in the filter.
    • Be prepared for more oil to spill out when removing the filter.
  1. Installing the New Oil Filter:
    • Before installing the new oil filter, apply a small amount of new oil to the rubber gasket on the top of the filter. You can also add some oil into the new filter.
    • Screw the new oil filter onto the engine by hand until it’s snug, then use the filter wrench to tighten it about 3/4 of a turn more. Don’t need to tighten super hard as that will make it hard to get off later.

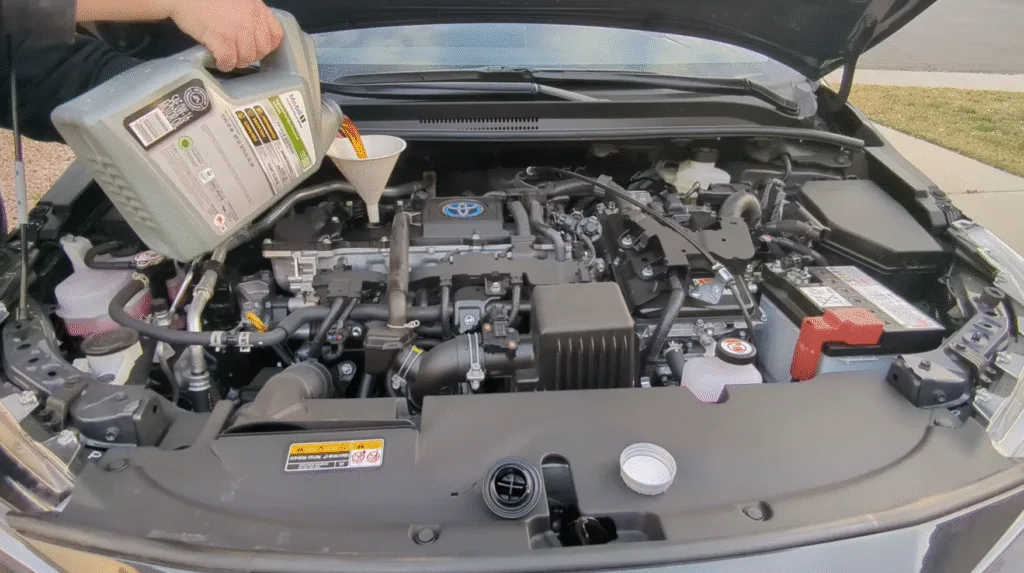

  2. Adding New Oil:
    • Locate the oil filler cap on the top of the engine. Remove it.
    • Insert a funnel into the filler hole and slowly pour in the recommended amount of new oil. For the 2023 Hybrid Corolla it will be about 4.5 quarts of oil. Check your vehicle’s manual for the correct oil quantity.
    • Wait a moment for the oil to settle and then check the oil level using the dipstick. Add more oil if necessary. Do not overfill.
  1. Final Steps:
    • Retighten the oil filler cap and ensure it’s tightly sealed.
    • Check that the oil drain plug is not leaking.
    • Lower the car off the jack stands (if applicable).
  2. Disposal:
    • Properly dispose of the used oil and oil filter at a recycling center or designated collection point. Many auto parts stores accept used oil for recycling. Wipe up messes with paper towel.

Always refer to your Toyota Corolla’s owner’s manual for specific instructions and torque specifications, as they might vary based on the model year and engine type. If you’re not comfortable performing this task yourself, it’s recommended to have a professional mechanic change the oil for you.

That’s it for our 2023 Toyota Corolla oil change tutorial!
